General Information

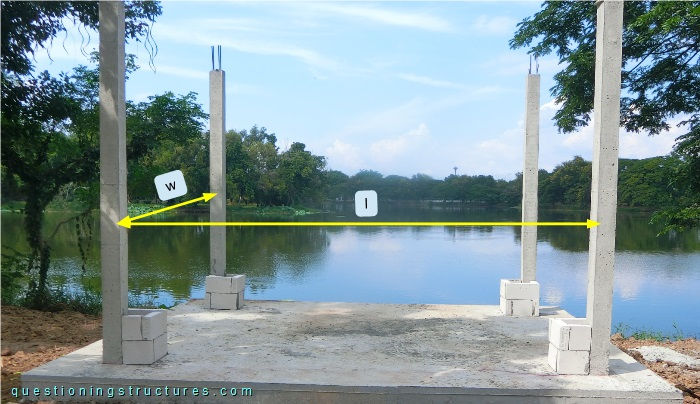

Figure 1 shows the construction site of a pavilion.

Pavilion.
Construction site of a pavilion

The project consists of building several pavilions alongside a lake. A single pavilion has four reinforced concrete columns, two benches, and a Dutch gable roof. The distance between the reinforced concrete columns l ≅ 3.5 m, and the distance w ≅ 2.5 m.

Bench Concept

Figure 2 shows the construction site of a bench.

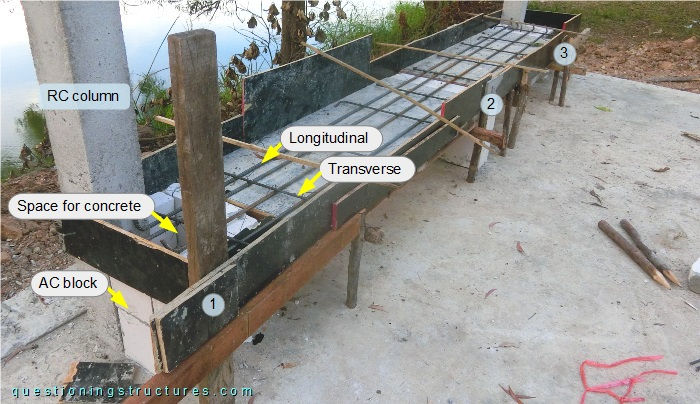

Bench formwork and reinforcement.
Formwork and reinforcement of an RC bench

The bench top has a depth of about 10 cm, a width of about 50 cm, and a length of about 370 cm; it is made of reinforced concrete and has three legs (labeled with 1 to 3). All legs are made of autoclaved concrete (AC) blocks; the end legs 1 and 3 are also made of concrete, which is poured into the space between the AC blocks and the RC columns. The reinforcement consists of longitudinal and transverse rebars with 90-degree bent ends (bottom reinforcement only). The longitudinal rebars are placed directly (without cover) over the formwork panels and have a bigger diameter and a shorter spacing than the transverse rebars, which are placed directly over the longitudinal ones. Figure 3 shows a detailed view of an end leg region.

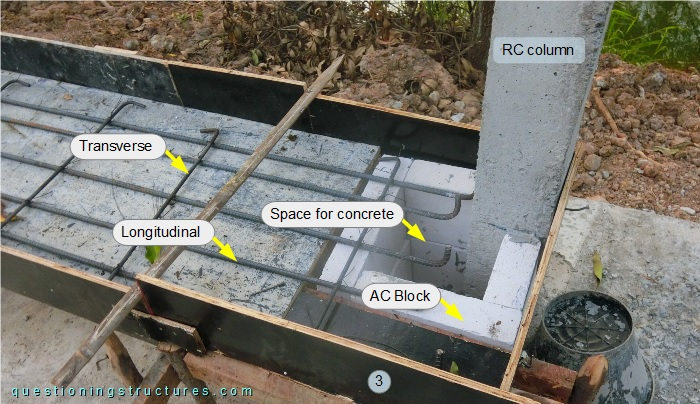

End leg.
Leg region of a reinforced concrete bench

The bench structure and the RC column are connected by direct contact.

  • Does the reinforcement have any problems?

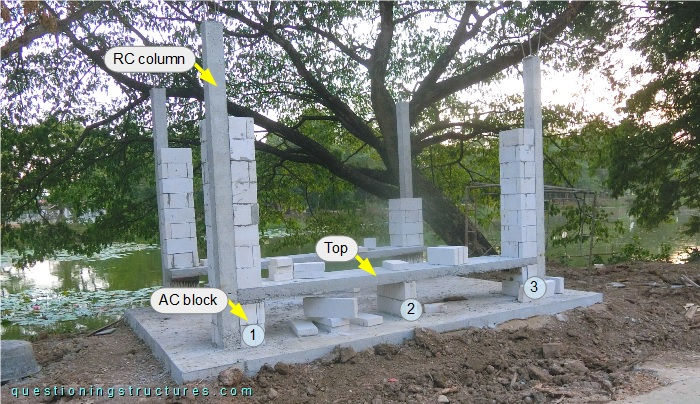

  • Figure 4 shows the construction site of a pavilion with finished benches.

    Pavilion with finished benches.
    Pavilion with reinforced concrete benches

    New Bench Concept

    The bench concept was changed; all pavilions were demolished until the foundation, as shown in figures 5 and 6.

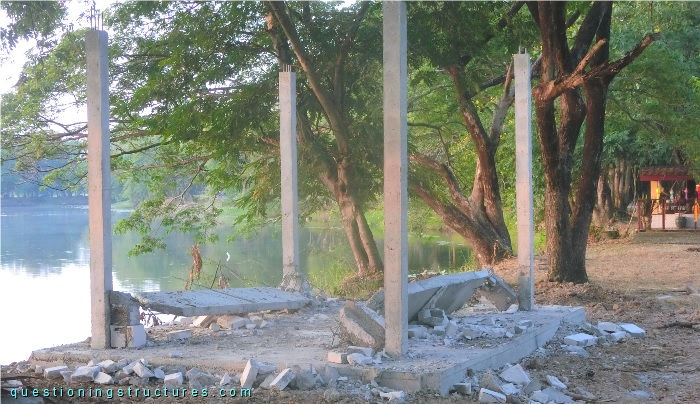

    Pavilion during demolition works.
    Pavilion during demolition works

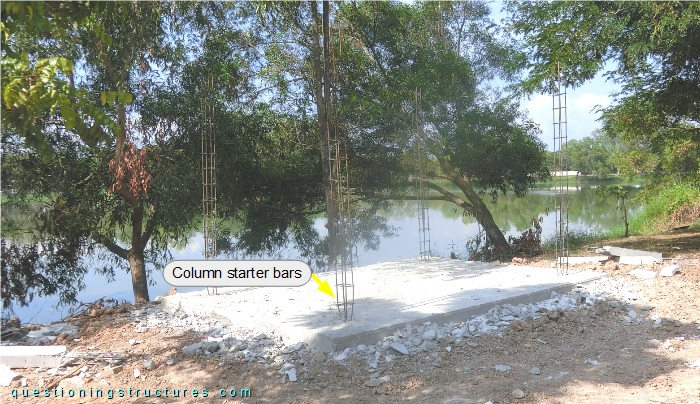

    Pavilion after demolition works (new column reinforcement already installed).
    Pavilion after demolition works
  • What are some possible reasons to change the project during the construction phase?
    How many resources are used during the construction of the pavilions and their demolition until the foundation?

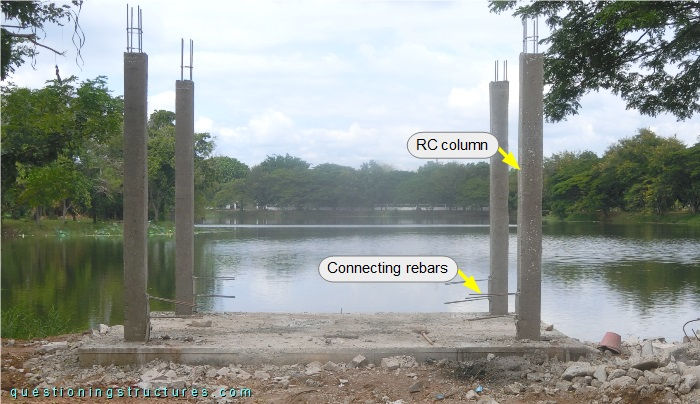

  • Figure 7 shows the construction site of a new pavilion.

    Pavilion.
    Construction site of a pavilion

    The new bench is made of reinforced concrete and connected to the columns by rebars. Each bench has two legs (the columns), and the cross-section has an asymmetric inverted U-like shape, as shown in the finished bench in figure 8.

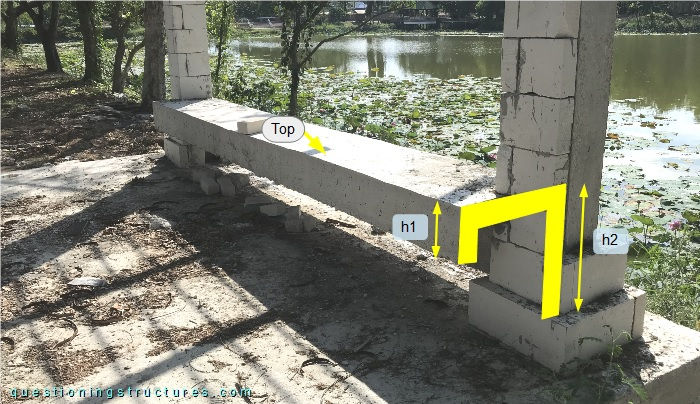

    New RC bench.
    Pavilion with reinforced concrete benches

    The cross-section shape is shown in yellow. The bench top has a depth of about 10 cm, a width of about 50 cm, and a length of about 330 cm; the front member has a height (h1) of about 20 cm, while the back member has a height (h2) of about 40 cm. Figure 9 shows the construction site of a new pavilion.

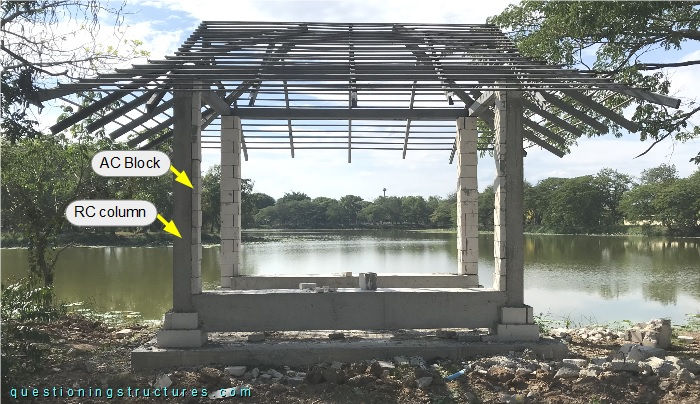

    New pavilion with steel roof structure.
    Pavilion with RC benches and steel roof structure

    The RC columns are partially confined with AC blocks.

  • What are some possible reasons to use reinforced concrete benches instead of timber or steel benches?
    Does the pavilion have a structural safety or serviceability problem without the AC blocks?
