General Information

Figure 1 shows a schematic three-dimensional view of a freestanding steel carport.

Freestanding carport.
Three-dimensional drawing of a freestanding steel carport

The steel structure consists mainly of five truss columns, five knee-braced beams, a tie truss, purlins, and metal roofing sheets.

Carport Collapse

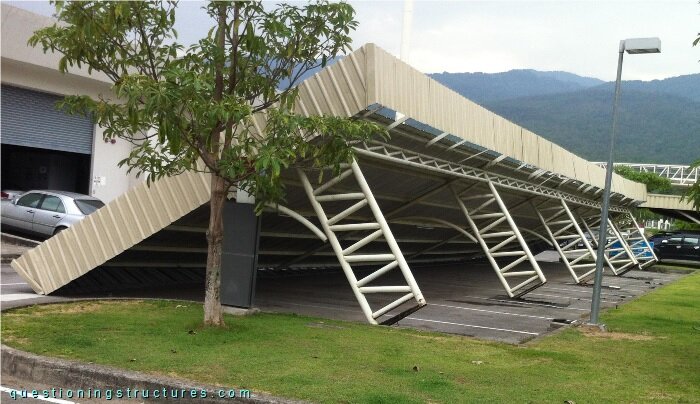

Figure 2 shows the carport after a wind storm.

Carport after a wind storm.
Carport collapse

The wind storm caused a global stability failure. Figure 3 shows the base of a truss column.

Truss column base 1.
Truss column base of a collapsed carport

The base consists of a base plate welded to the chords. An approximately 4 cm asphalt layer over the base plate and gravel and sand under the base plate are noticeable. Figure 4 shows a further base.

Truss column base 2.
Truss column base of a failed carport

The front sector of the base plate is missing; a horizontal rebar and gravel and sand under the base plate are noticeable.

  • What was the foundation concept and its structural model?
